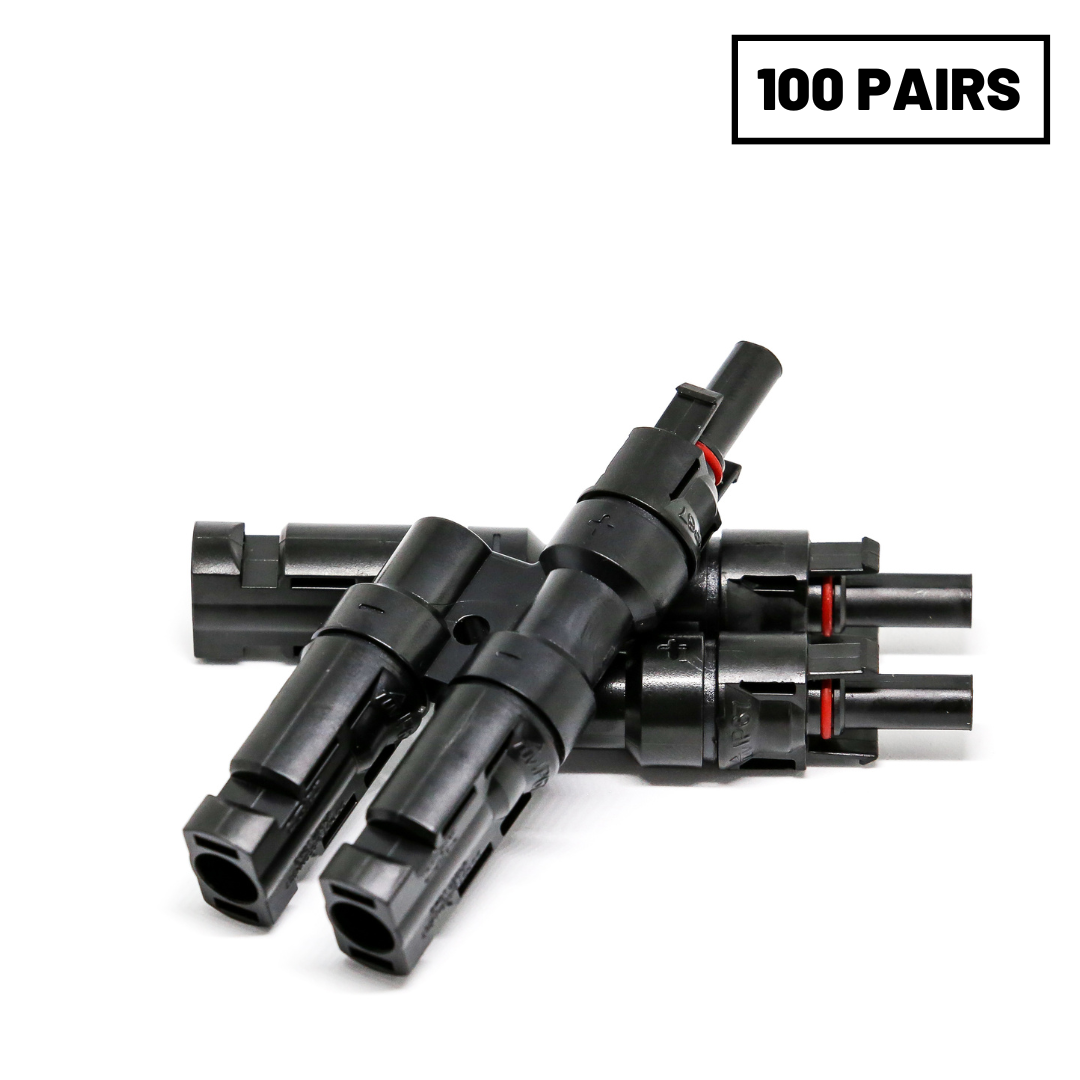

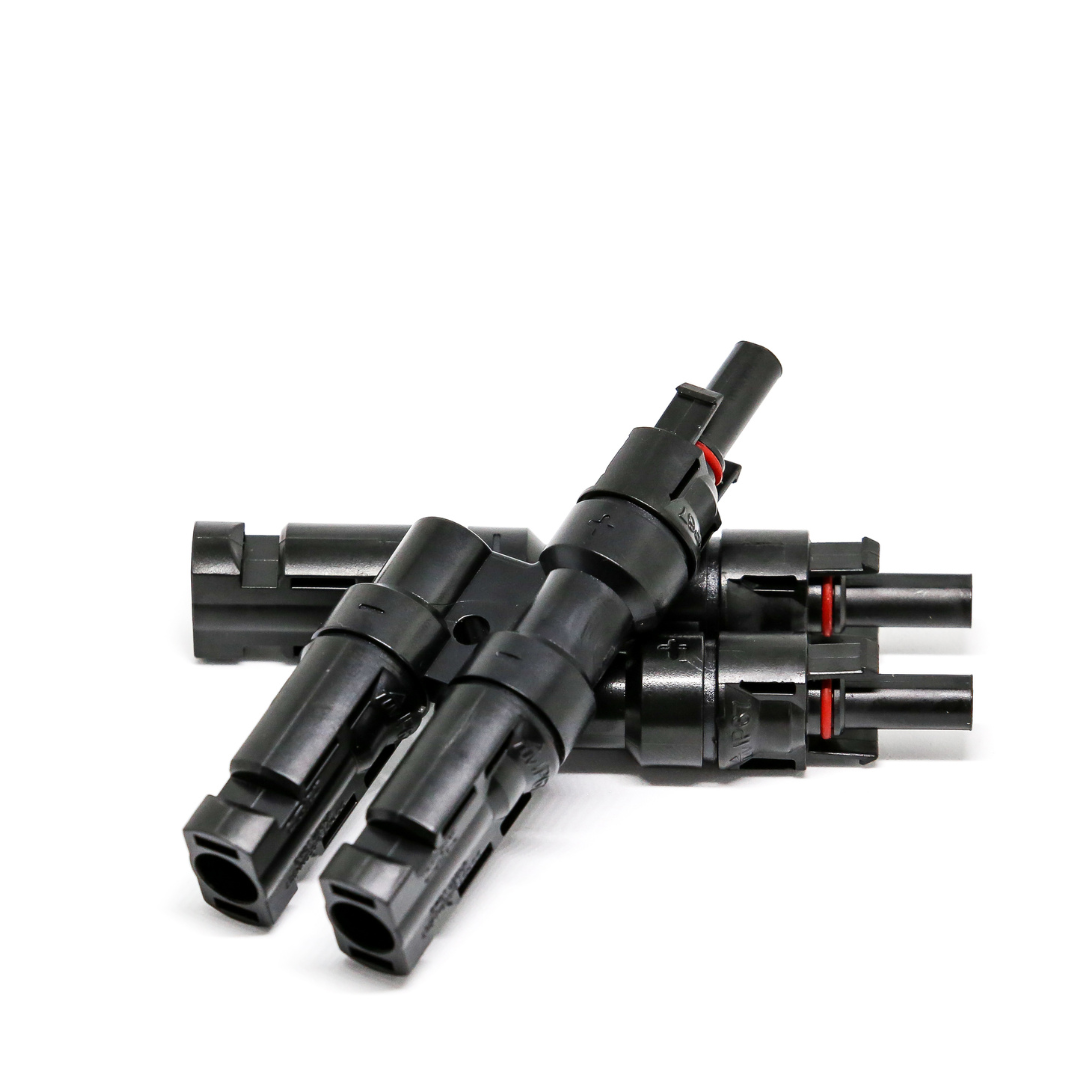

Solar PV Branch Connector Cable Splitter Coupler for Solar Panel
$10.99
Details
Branch Connectors provide a quick, easy, and reliable way to wire two or more solar panels together. Multiple sets of Branch Connectors can be used to wire an unlimited number of solar panels together.
- Includes 1 male branch connector and 1 female branch connector (per pair)
- Compatible with all solar connectors
- Designed for outdoor use on solar panel systems
- Waterproof and dustproof
| Rated Current | 30A |
| Maximum Voltage | 1000 VDC |
| Protection Class | Class II |
| Contact Resistance | < 0.5 milli ohms |
| Temperature Range | -40 C to +90 C |
| Protection Degree | IP67 IP2X (unmated) |
| Wire size range | 10, 12, 14 AWG (6 mm2, 4 mm2, 2.5 mm2) |
| Insulation Material | PA/PC |
| Flame Class | UL94-VO, UL94-VA |
| Contact Material | Silver Plated Copper |
| Certifications | TUV |
